加拿大Solinst锁定井盖组件(3001)

加拿大Solinst锁定井盖组件(3001)

3001 型 Levelogger 井盖组件设计用于安装带减速器的 2" 或 4" 井,并提供使用电缆、电线或直读电缆安装 Levelogger 水位数据记录器的选项。

货号:S951

型号:3001

联系客服

在线咨询

产品介绍

产品名称:锁定井盖组件

品牌:Solinst
产地:加拿大
型号:3001

加拿大Solinst锁定井盖组件(3001)
3001 型 Levelogger 井盖组件设计用于安装带减速器的 2" 或 4" 井,并提供使用电缆、电线或直读电缆安装 Levelogger 水位数据记录器的选项。Well Cap 可以将Levelogger 5和Barologger 5 悬挂在一个井中,并且仍然为其他监测设备提供一个访问孔。盖子可以牢固地锁定关闭,并且可以通风以平衡大气压力。

一种设计提供多种安装选项
用于监控设备的附加检修孔
多支持两个水平仪
可锁定,安全安装
耐用、坚固的设计
加拿大Solinst锁定井盖组件(3001)
井盖可以使用螺钉永久固定在井筒上,并且可以使用 3/8" (9.5 mm) 直径锁钩将井盖牢固锁定
加拿大Solinst锁定井盖组件(3001)

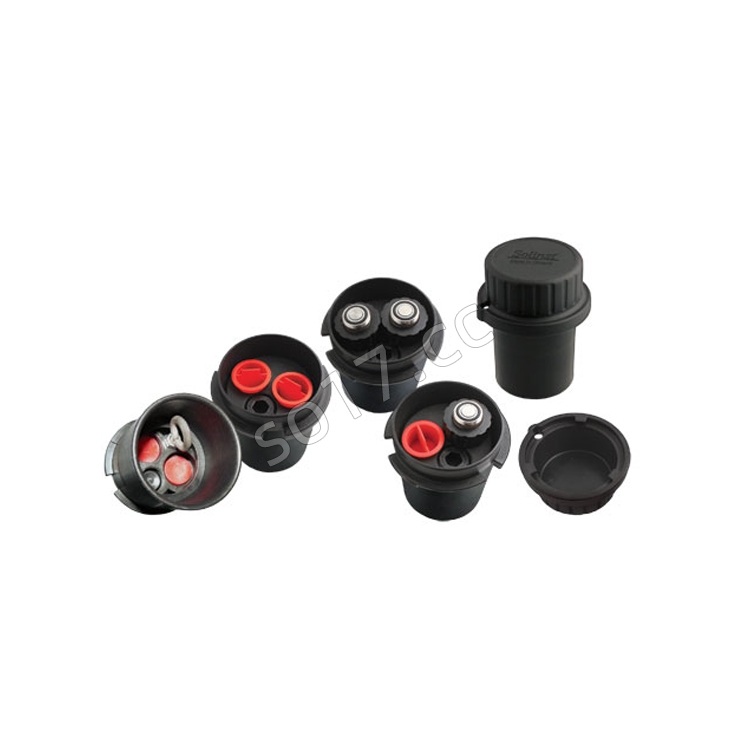

标准 2" 锁定井盖(适合标称 2" PVC 管)左
标准 2" 带 4" 井适配器的锁定井盖(适合标称 4" PVC 管)右


Levelogger 井盖优势:

通风以平衡井中的大气压力
多支持两个水平仪
可锁定,安全安装
吊环螺栓提供坚固的系带
适合 2" 和 4" 监测井(使用适配器)
使用 3/8" 内六角扳手卸下额外的插头,以便进行额外的监控访问
一种设计提供多种设备支持
加拿大Solinst锁定井盖组件(3001)
中文内容来自机器翻译,内容仅供参考,实际内容可参考原厂介绍或以合同为准。
英文原文:

The Model 3001 Levelogger Well Cap Assembly is designed to fit 2", or 4" wells with a Reducer, and provides options for installing Leveloggers water level dataloggers with wireline, cord, or Direct Read Cables. The Well Cap can suspend a Levelogger 5 and Barologger 5 in one well, and still provides an access hole for other monitoring equipment. The Cap can be securely locked shut, and is vented to equalize atmospheric pressure.

One design provides multiple installation options
Additional access hole for monitoring equipment
Supports up to two Leveloggers
Lockable, secure installation
Durable, sturdy design

Locking Well Caps:
A locking well cap, designed to support both 2" and 4" wells (using an Adaptor). This versatile, vented well cap is available in two configurations. The first is designed to support our Levelogger Series of products, the second is designed to support our Bladder Pumps and Double Valve Pumps. Solinst Locking Well Caps are convenient, durable, and suitable for numerous other applications and installation types.

Well Caps can be permanently secured to the well casing using screws and the cap securely locked using a 3/8" (9.5 mm) shackle diameter lock

Levelogger Installation Well Cap:
The Model 3001 Levelogger Well Cap Assembly is designed to fit 2" wells (or 4" wells with an Adaptor), and provides options for installing Leveloggers with wireline, Kevlar cord, or using a Direct Read Cable.

When installing Leveloggers using a stainless steel wireline or Kevlar cord suspension, the water level dataloggers are securely supported when tied off to the eyebolt included on the underside of the well cap insert.

When installing Leveloggers using a Direct Read Cable, the cable simply fits inside the well cap insert hole, when the red dust cap is removed. For Levelogger installations where a Barologger is intended to be installed in the same well, the well cap supports up to two Direct Read Cables. Even with two Direct Read Cables installed, there is still an access hole available for manual water level measurements or groundwater sampling, without disturbing the down-hole Leveloggers.

Levelogger Well Cap Advantages:
Vented to equalize atmospheric pressure in the well
Supports up to two Leveloggers
Lockable, secure installation
Eyebolt provides sturdy tie off
Fits both 2" and 4" monitoring wells (using an Adaptor)
Use a 3/8" Allen/hex key to remove the extra plug for additional monitoring access
One design provides multiple equipment support
