美国metone风向传感器020D

产品介绍

产品名称: 风向传感器

型号系列:020D

品牌:metone

产地:美国

价格:**终成交价格需联系客服

风向传感器 020D

020C 风向传感器提供方位角数据，用于与业务研究和研究相关的微气象测量。轻型翼型叶片直接耦合到单个精密电位器。当需要低启动阈值、高阻尼比或短延迟距离时，这些传感器特别有用。

风速和风向传感器都用于从南极寒冷到干旱沙漠炎热的环境。01OC、010C-1 和 020C 仪器符合美国 EPA 和 NRC 对关键监管、研究或科学测量应用的性能规范。

风向传感器 020D特征

低启动门槛

内部加热器延长轴承寿命

低调以**程度地减少“传感器湍流”

高阻尼比

延迟距离短

快速断开连接器

可现场更换的电子元件

防护等级 65 (IP65)

可靠性

010C 和 020C 由不锈钢和阳极氧化铝组件制成，在功能上比任何其他同类传感器更可靠：

内置的电场浪涌保护大大减少了与静电场、未遂雷击和接地系统不良相关的问题

包含 Met One Instruments 的内部加热器（仅限交流使用）通过轴承提供积极的清洁抽吸，大大延长了它们的寿命

可选的外部除冰加热器套管，适用于可能遇到冻雨、结冰和低风速的应用

风向传感器 020D应用：

环境监测

气候研究

中文内容来自机器翻译，内容仅供参考，实际内容可参考原厂介绍或以合同为准。

英文原文：

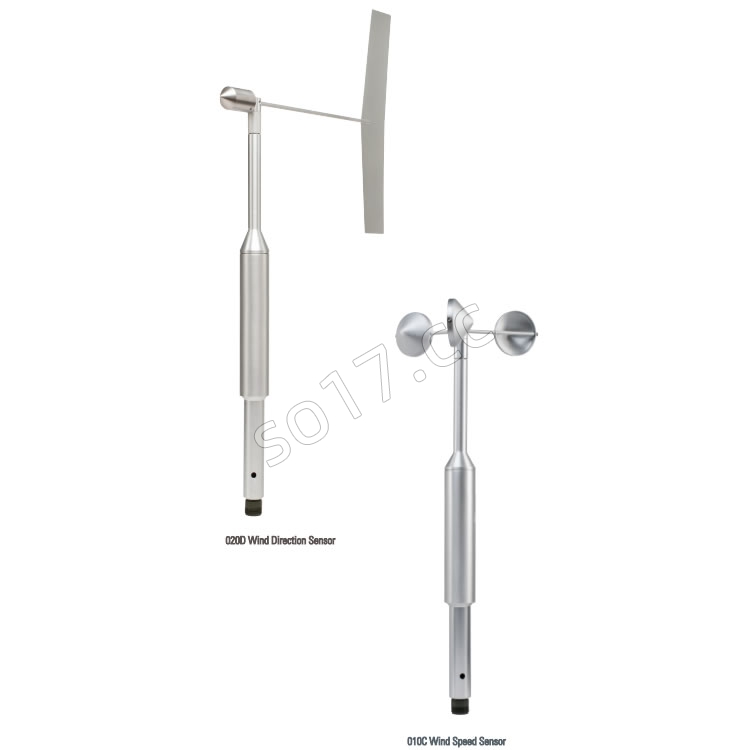

Wind Speed Sensor 010C – Wind Direction Sensor 020D

The 010C Wind Speed Sensor provides accurate and detailed information on horizontal wind speed. The lightweight three-cup anemometer is used in virtually all applications where fast response and low starting threshold(s) are of paramount importance.

The 020C Wind Direction Sensor provides azimuth data for use in micrometeorological measurements related to operational studies and research. The lightweight airfoil vane is directly coupled to a single precision potentiometer. These sensors are especially useful when a low starting threshold, a high damping ratio, or a short delay distance is required.

Both wind speed and wind direction sensors are used in environments ranging from Antarctic cold to arid desert heat. The 01OC, 010C-1, and 020C instruments meet U.S. EPA and NRC performance specifications for critical regulatory, research or scientific measurement applications.

FEATURES

Low starting threshold

Internal heater for long bearing life

Low profile to minimize “sensor turbulence”

High damping ratio

Short delay distance

Quick-disconnect connector

Field-replaceable electronic components

Ingress Protection Level 65 (IP65)

RELIABILITY

The 010C and 020C are made of stainless steel and anodized aluminum components and are functionally more reliable than any other sensors of their kind:

Built-in electrical field surge protection greatly reduces problems associated with static fields, near-miss lightning hits, and poorgrounding systems

Inclusion of Met One Instruments’ internal heater (AC use only) provides positive clean aspiration through the bearings, greatly increasing their life

Optional, external de-icing heater sleeve for applications where freezing rain, ice, and low wind speeds may be encountered

APPLICATIONS:

Ambient Monitoring

Climate Research
