产品介绍
产品名称: 天气传感器
型号系列:MSO
品牌:metone
产地:美国
价格:**终成交价格需联系客服
MSO 天气传感器

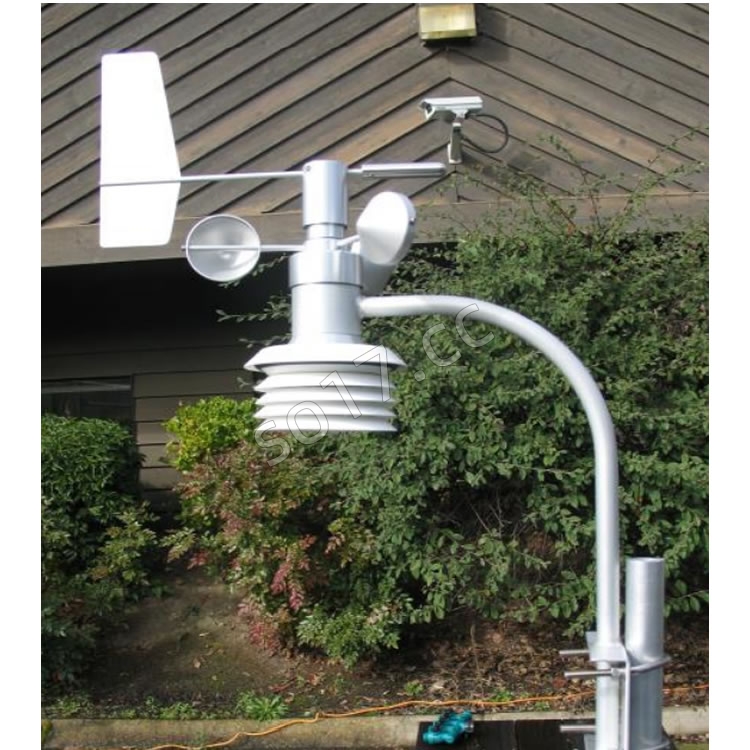

MSO 是一个集成的 5 参数气象站。风速和风向是使用传统的杯子和叶片技术测量的。所有其他测量都安装在多板自然吸气式辐射防护罩中，以减少太阳辐射加热误差。防护罩由一系列同心白色铝板组成，允许空气流过防护罩，同时阻挡直射的太阳射线。
温度传感器是铂 RTD。相对湿度是基于我们为持续暴露于恶劣气候而设计的精确固态传感器。气压传感器是一种坚固的压阻装置，具有高精度和长期稳定性。
MSO 串行输出可以包括来自可选翻斗式雨量计的数据。
数字串行数据流每秒输出一次，或根据数据系统的命令输出。
MSO 天气传感器特征
风速和风向
坚固的全金属外壳
温度
SDI12、RS232、RS485 输出
湿度
Met One 7500 协议
气压
集成安装和 50 英尺电缆
雨选项
配件选项
10600 USB和电源接口。
符合 WMO 标准的外部翻斗式雨量计连接简单，并允许根据行业指南正确安装和选址。
MSO 天气传感器应用：
环境监测
粉尘监测
围栏监控
采矿和矿石加工
学校
智慧城市
气候研究
可再生能源
中文内容来自机器翻译，内容仅供参考，实际内容可参考原厂介绍或以合同为准。
英文原文：
MSO Weather Sensor
The MSO is an integrated 5-parameter Weather Station. Wind Speed and Wind Direction are measured using conventional cup and vane techniques. All other measurements are housed in a multi-plate naturally aspirated radiation shield to reduce solar radiation heating errors. The shield consists of a series of concentric white aluminum plates, which allow air to flow through the shield while blocking direct solar rays.
The temperature sensor is a platinum RTD. Relative humidity is a based on our accurate solid state sensor designed for continuous exposure to adverse climates. The barometric pressure sensor is a robust piezo-resistive device featuring high accuracy and long term stability.
The MSO serial output can include data from an optional tipping bucket rain gauge.
The digital serial data stream is output every second, or upon command by data system.
FEATURES
Wind Speed and Direction
Rugged All Metal Housing
Temperature
SDI12, RS232, RS485 Outputs
Humidity
Met One 7500 Protocol
Barometric Pressure
Integrated Mount and 50ft Cable
Rain Option
ACCESSORY OPTIONS
10600 USB and power interface.
WMO compliant external tipping bucket rain gauge connects simply and allows for correct installation and siting per industry guidelines.
APPLICATIONS:
Ambient Monitoring
Dust Monitoring
Fenceline Monitoring
Mining & Ore Processing
Schools
Smart Cities
Climate Research
Renewable Energy
